Kolver mini KE KT50 Torque Sensor Maximize
021405/F50 - MINIKE F50

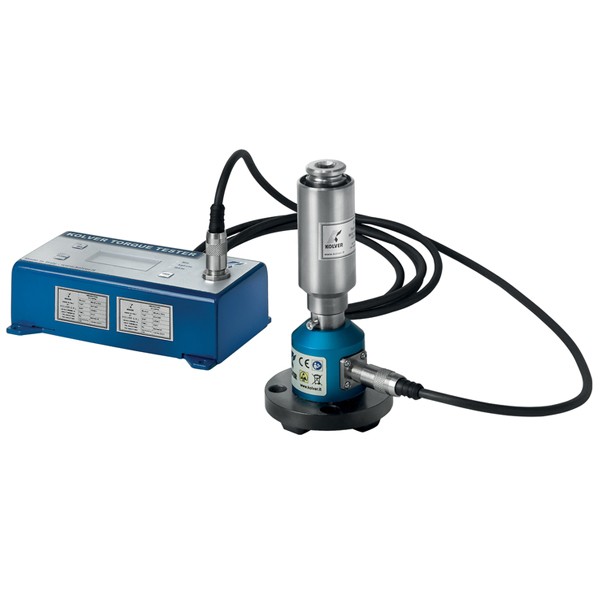

Kolver mini KE KT50 Torque Sensor

Send inquiry
×

Kolver mini KE KT50 torque sensor MINIKE F50

Measuring range: 2-50 Nm

Accuracy: ± 10 cNm

Data output: mini USB

Sensor: KT50 non-rotating torque transducer

Display: mini KE

PC software: Kolver Torque Analyzer

Cable length: 3 meters, sensor and display connecting cable

Units: Nm, Kgf.cm, lbf.in

Reset: manual / automatic

Application: for measuring electric and pneumatic screwdriver with automatic shut-off

Accessories: KT50 non-rotating torque sensor, joint simulator measuring head, mini KE display, manufacturers certificate of calibration, AC adapter, carrying case, PC software

More details

Product details
Measuring range 2-50 Nm
Accuracy ± 10 cNm
Data output mini USB
Sensor KT50 non-rotating torque transducer
Display mini KE
PC software Kolver Torque Analyzer
Cable length 3 meters, sensor and display connecting cable
Units Nm, Kgf.cm, lbf.in
Reset manual / automatic
Application for measuring electric and pneumatic screwdriver with automatic shut-off
Accessories KT50 non-rotating torque sensor, joint simulator measuring head, mini KE display, manufacturers certificate of calibration, AC adapter, carrying case, PC software
Display dimensions 150 x 70 x 45 mm
Display weight 0.8 kg
Torque sensor dimensions 75 x 60 mm
