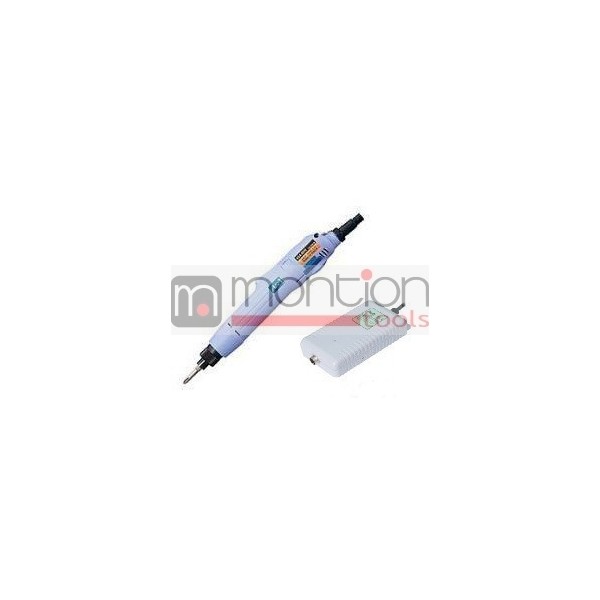

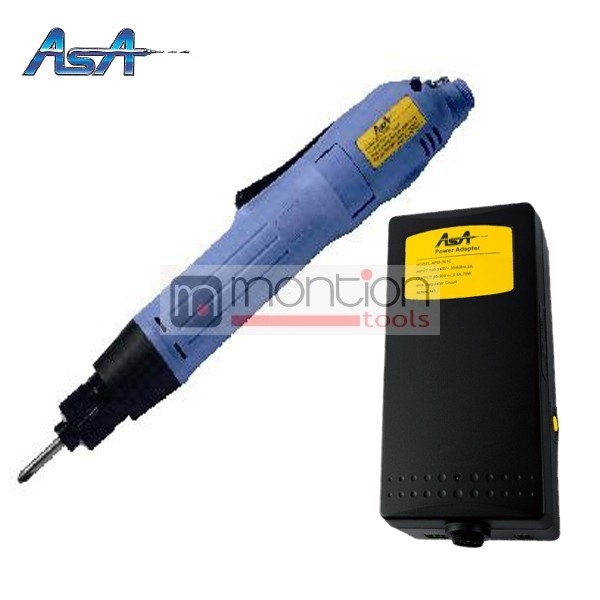

ASA-6800PS electric screwdriver with APM-301C power supply

Send inquiry

ASA-6800PS electric screwdriver with APM-301C power supply

Torque: 0.5 - 2.5 Nm

No load speed: 450 - 750 rpm

Bit type: 1/4 HEX

Start type: push to start

Shut off: automatic

Direction: clockwise / counter-clockwise

Motor: with carbon brush

Accuracy: +- 3%

Weight: 535 g

Length: 237 mm

Grip diamater: 33 mm

Machine screw size: 3 - 5 mm

Tapping screw size: 2.6 - 4 mm

APM-301C power supply: speed setting, input voltage 100 - 240 VAC 50 / 60 Hz, output voltage 20 - 30 VDC, connection 6 pin, power 75 W, weight 380 g, dimension 172 x 84 x 46 mm, input signal release screwdriver, output signals ready for operation, torque reached

Scope of supply: ASA-6800PS screwdriver, APM-301C power supply, screwdriver cable, 1 pair carbon brush

Accessory: 6H1047 torque cover

More details

Product details

Torque	0.5 - 2.5 Nm
No load speed	450 - 750 rpm
Bit type	1/4 HEX
Start type	push to start
Shut off	automatic
Direction	clockwise / counter-clockwise
Motor	with carbon brush
Accuracy	+- 3%
Weight	535 g
Length	237 mm
Grip diamater	33 mm
Machine screw size	3 - 5 mm
Tapping screw size	2.6 - 4 mm
APM-301C power supply	speed setting, input voltage 100 - 240 VAC 50 / 60 Hz, output voltage 20 - 30 VDC, connection 6 pin, power 75 W, weight 380 g, dimension 172 x 84 x 46 mm, input signal release screwdriver, output signals ready for operation, torque reached
Scope of supply	ASA-6800PS screwdriver, APM-301C power supply, screwdriver cable, 1 pair carbon brush
Accessory	6H1047 torque cover
