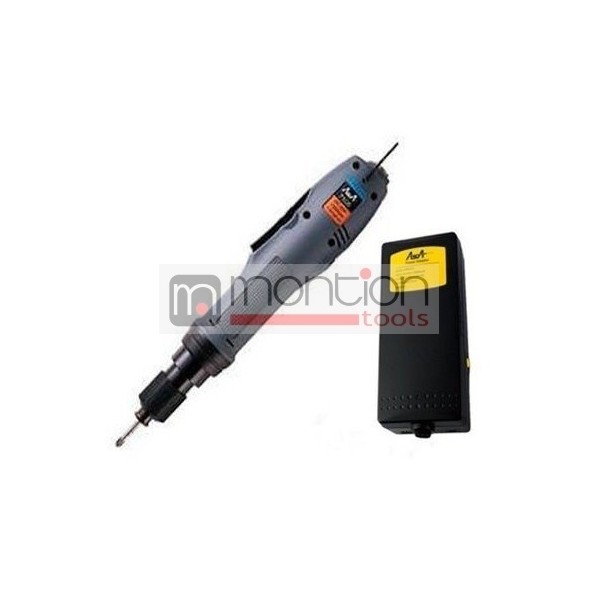

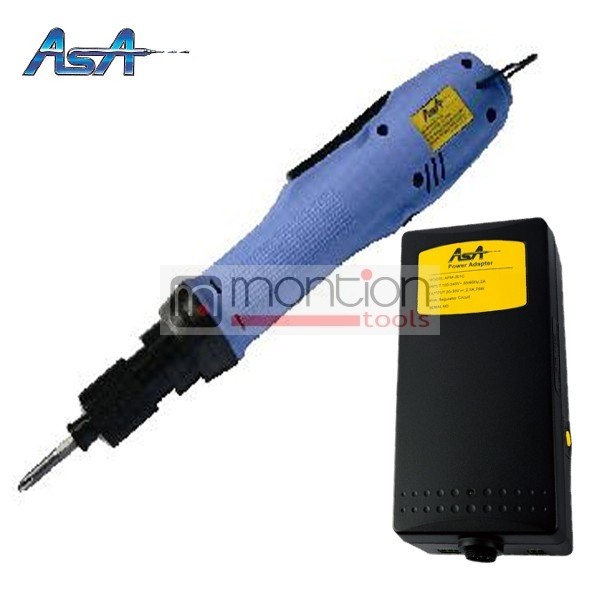

ASA-7500 electric screwdriver with APM-301C power supply
Torque: 0.7 - 3 Nm
No load speed: 500 - 1000 rpm
Bit type: 1/4 HEX
Start type: lever start
Shut off: automatic
Direction: clockwise / counter-clockwise
Motor: with carbon brush
Accuracy: +- 3%
Weight: 670 g
Length: 265 mm
Grip diamater: 39 mm
Machine screw size: 3 - 4 mm
Tapping screw size: 2.6 - 3.5 mm
APM-301C power supply: speed setting, input voltage 100 - 240 VAC 50 / 60 Hz, output voltage 20 - 30 VDC, connection 6 pin, power 75 W, weight 380 g, dimension 172 x 84 x 46 mm, input signal release screwdriver, output signals ready for operation, torque reached
Scope of supply: ASA-7500 screwdriver, APM-301C power supply, screwdriver cable, 1 pair carbon brush
Accessories: 4H2052 torque cover, 4A9122 angle head
