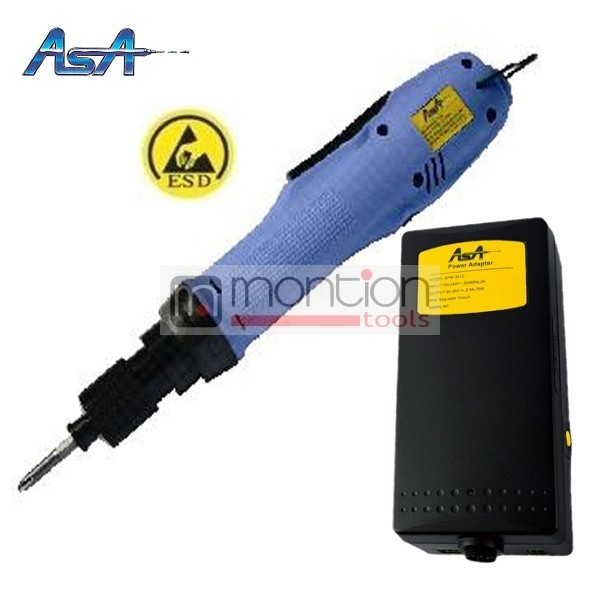

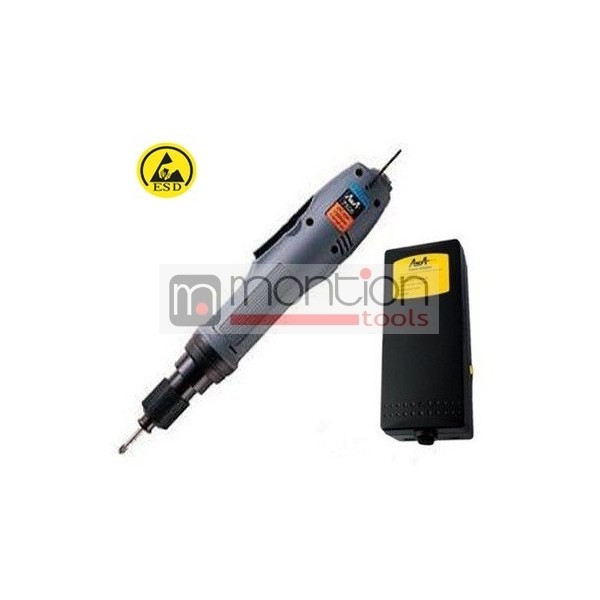

ASA-7500PS ESD electric screwdriver with APM-301C power supply

ASA-7500PS ESD electric screwdriver with APM-301C power supply

Torque: 0.7 - 3 Nm

No load speed: 500 - 1000 rpm

Bit type: 1/4 HEX

Type: ESD type

Start type: push to start

Shut off: automatic

Direction: clockwise / counter-clockwise

Motor: with carbon brush

Accuracy: +- 3%

Weight: 740 g

Length: 269 mm

Grip diamater: 39 mm

Machine screw size: 3 - 5 mm

Tapping screw size: 2.6 - 4 mm

APM-301C power supply: speed setting, input voltage 100 - 240 VAC 50 / 60 Hz,  output voltage 20 - 30 VDC, connection 6 pin, power 75 W, weight 380 g, dimension 172 x 84 x 46 mm, input signal release screwdriver, output signals ready for operation, torque reached

Scope of supply: ASA-7500PS ESD screwdriver, APM-301C power supply, screwdriver cable, 1 pair carbon brush

Accessories: 4H2052 torque cover
