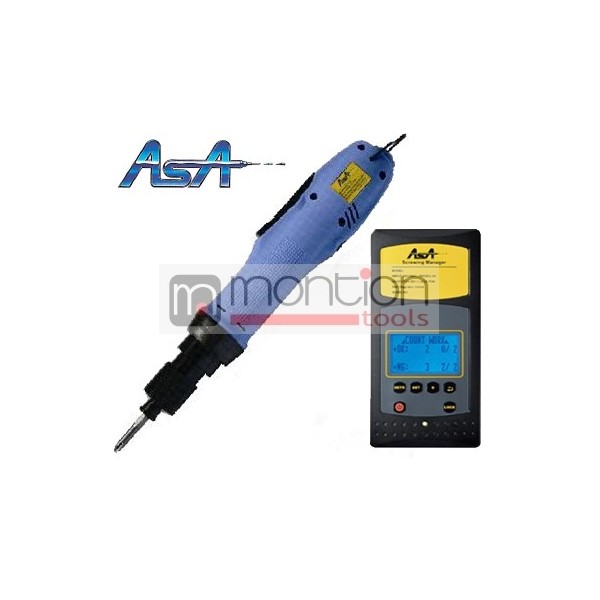

ASA-8000 electric screwdriver with AM-65 controller Maximize

ASA-8000 + AM-65

ASA-8000 electric screwdriver with AM-65 controller

Send inquiry
×

ASA-8000 electric screwdriver with AM-65 controller

Torque: 1.2 - 3 Nm

No load speed: 350 - 550 rpm

Bit type: 1/4 HEX

Start type: lever start

Shut off: automatic

Direction: clockwise / counter-clockwise

Motor: with carbon brush

Accuracy: +- 3%

Weight: 670 g

Length: 265 mm

Grip diamater: 39 mm

Machine screw size: 3.5 - 5 mm

Tapping screw size: 3 - 4 mm

Product informations AM-65 control unit: input voltage 100 - 240 VAC 50 / 60 Hz,  output voltage 20 - 30 VDC, connection 5 pin, power 75 W, weight 450 g, dimension 172 x 81 x 61 mm

AM-65 electronic control unit setting: workpiece counter 1-60,000 pieces, 1-99 piece / work piece, screw time 0.01-9.99 seconds, parameter sets 10 pieces - sequence individually or sequentially adjustable from 0.01-9.99 seconds, Output signal / ready for operation - Torque reached - Workpiece complete OK - Single screw operation OK - Error screwdriving, input signal / release screwdriver

Scope of supply: ASA-8000 screwdriver, AM-65 control unit, screwdriver cable

More details

Product details
Torque 1.2 - 3 Nm
No load speed 350 - 550 rpm
Bit type 1/4 HEX
Start type lever start
Shut off automatic
Direction clockwise / counter-clockwise
Motor with carbon brush
Accuracy +- 3%
Weight 670 g
Length 265 mm
Grip diamater 39 mm
Machine screw size 3.5 - 5 mm
Tapping screw size 3 - 4 mm
Product informations AM-65 control unit input voltage 100 - 240 VAC 50 / 60 Hz,  output voltage 20 - 30 VDC, connection 5 pin, power 75 W, weight 450 g, dimension 172 x 81 x 61 mm
AM-65 electronic control unit setting workpiece counter 1-60,000 pieces, 1-99 piece / work piece, screw time 0.01-9.99 seconds, parameter sets 10 pieces - sequence individually or sequentially adjustable from 0.01-9.99 seconds, Output signal / ready for operation - Torque reached - Workpiece complete OK - Single screw operation OK - Error screwdriving, input signal / release screwdriver
Scope of supply ASA-8000 screwdriver, AM-65 control unit, screwdriver cable
