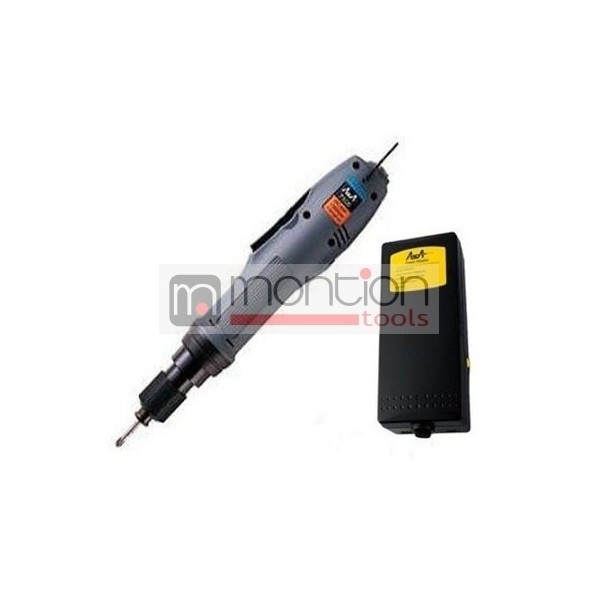

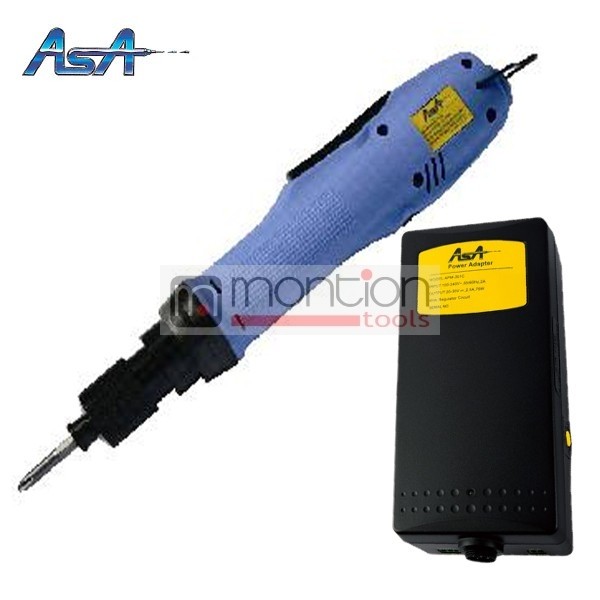

ASA-8000 electric screwdriver with APM-301B power supply

Send inquiry

ASA-8000 electric screwdriver with APM-301B power supply

Torque: 1.2 - 3 Nm

No load speed: 350 - 550 rpm

Bit type: 1/4 HEX

Start type: lever start

Shut off: automatic

Direction: clockwise / counter-clockwise

Motor: with carbon brush

Accuracy: +- 3%

Weight: 670 g

Length: 265 mm

Grip diamater: 39 mm

Machine screw size: 3.5 - 5 mm

Tapping screw size: 3 - 4 mm

APM-301B power supply: speed setting, input voltage 100 - 240 VAC 50 / 60 Hz, output voltage 20 - 30 VDC, connection 5 pin, power 75 W, weight 380 g, dimension 172 x 84 x 46 mm, input signal release screwdriver, output signals ready for operation, torque reached

Scope of supply: ASA-8000 screwdriver, APM-301B power supply, screwdriver cable, 1 pair carbon brush

Accessories: 4H2052 torque cover, 4A9122 angle head

More details

Product details

Torque	1.2 - 3 Nm
No load speed	350 - 550 rpm
Bit type	1/4 HEX
Start type	lever start
Shut off	automatic
Direction	clockwise / counter-clockwise
Motor	with carbon brush
Accuracy	+- 3%
Weight	670 g
Length	265 mm
Grip diamater	39 mm
Machine screw size	3.5 - 5 mm
Tapping screw size	3 - 4 mm
APM-301B power supply	speed setting, input voltage 100 - 240 VAC 50 / 60 Hz, output voltage 20 - 30 VDC, connection 5 pin, power 75 W, weight 380 g, dimension 172 x 84 x 46 mm, input signal release screwdriver, output signals ready for operation, torque reached
Scope of supply	ASA-8000 screwdriver, APM-301B power supply, screwdriver cable, 1 pair carbon brush
Accessories	4H2052 torque cover, 4A9122 angle head
