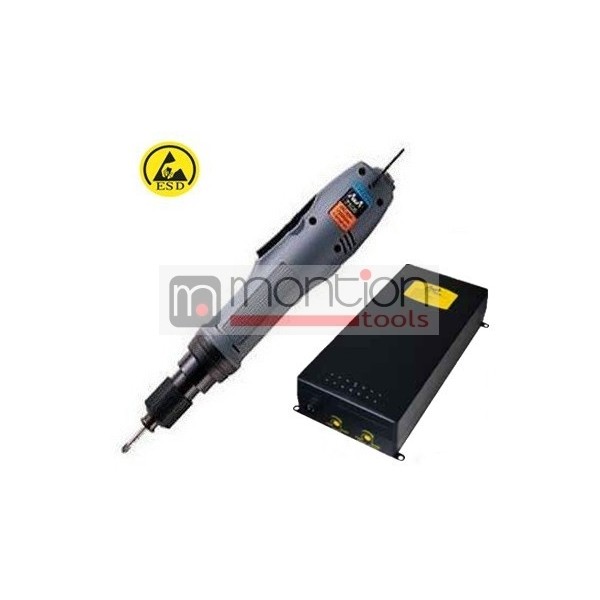

ASA-9000 ESD electric screwdriver with APL-301B power supply

ASA-9000 ESD electric screwdriver with APL-301B power supply

Torque: 2 - 5 Nm

No load speed: 650 rpm

Bit type: 1/4 HEX

Type: ESD type

Start type: lever start

Shut off: automatic

Direction: clockwise / counter-clockwise

Motor: with carbon brush

Accuracy: +- 3%

Weight: 670 g

Length: 265 mm

Grip diamater: 39 mm

Machine screw size: 4 - 6 mm

Tapping screw size: 3.5 - 5 mm

APL301B power supply: soft start 0 - 1 sec., 100-240 VAC 50 / 60 Hz,  output voltage 25 - 3 VDC, connection 5 pin, power 90 W , weight 1.1 kg, dimension 270 x 130 x 66 mm, input signal release screwdriver, output signals ready for operation, torque reached

Scope of supply: ASA-9000 ESD screwdriver, APL-301B power supply, screwdriver cable, 1 pair carbon brush

Accessories: 4H2052 torque cover, 4A9122 angle head
