ASA BS-6000 electric screwdriver with AM-30 controller Maximize

ASA BS-6000 + AM-30

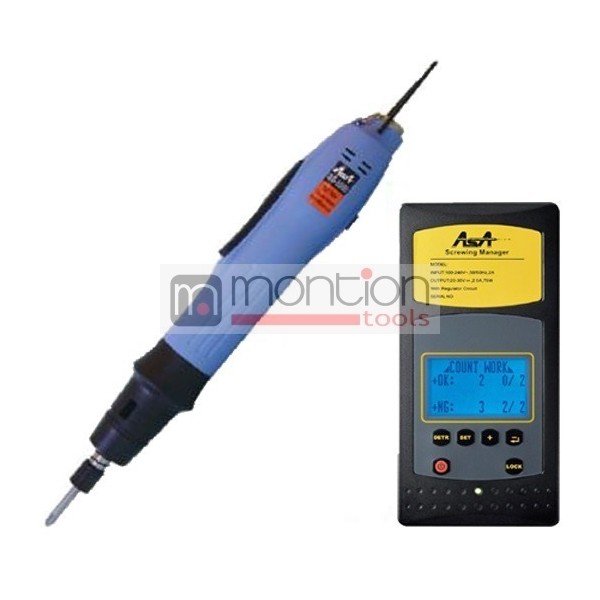

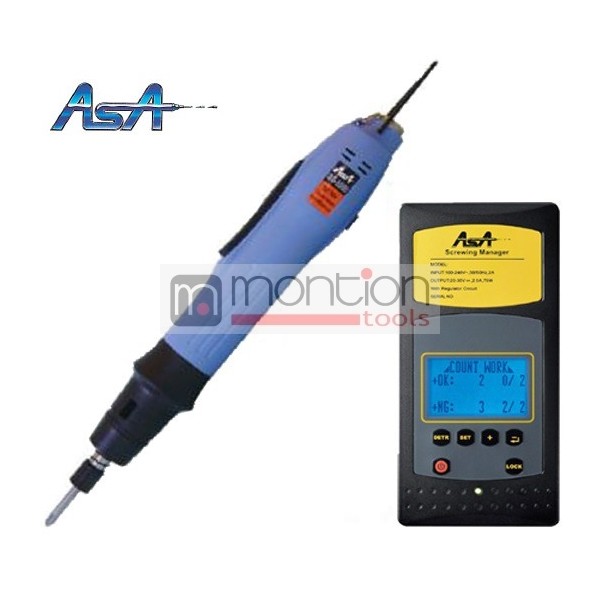

ASA BS-6000 electric screwdriver with AM-30 controller

Send inquiry
×

ASA BS-6000 brushless electric screwdriver with AM-30 controller

Torque: 0.2 - 1.6 Nm

No load speed: 700 - 1000 rpm

Bit type: 1/4 HEX

Start type: lever start

Shut off: automatic

Direction: clockwise / counter-clockwise

Motor: brushless

Accuracy: +- 3%

Weight: 412 g

Length: 227 mm

Grip diamater: 33 mm

Machine screw size: 2.2 - 4.2 mm

Tapping screw size: 2 - 3.2 mm

Product informations AM-30 control unit: input voltage 100 - 240 VAC 50 / 60 Hz,  output voltage 20 - 30 VDC, connection 5 pin, power 75 W, weight 450 g, dimension 172 x 81 x 61 mm

AM-30 electronic control unit setting: workpiece counter 1-60,000 pieces, 1-99 piece / work piece, screw time 0.01-9.99 seconds, parameter sets 10 pieces - sequence individually or sequentially adjustable from 0.01-9.99 seconds, Output signal / ready for operation - Torque reached - Workpiece complete OK - Single screw operation OK - Error screwdriving, input signal / release screwdriver

Scope of supply: ASA BS-6000 screwdriver, AM-30 control unit, screwdriver cable

More details

Product details
Torque 0.2 - 1.6 Nm
No load speed 700 - 1000 rpm
Bit type 1/4 HEX
Start type lever start
Shut off automatic
Direction clockwise / counter-clockwise
Motor brushless
Accuracy +- 3%
Weight 412 g
Length 227 mm
Grip diamater 33 mm
Machine screw size 2.2 - 4.2 mm
Tapping screw size 2 - 3.2 mm
Product informations AM-30 control unit input voltage 100 - 240 VAC 50 / 60 Hz,  output voltage 20 - 30 VDC, connection 5 pin, power 75 W, weight 450 g, dimension 172 x 81 x 61 mm
AM-30 electronic control unit setting workpiece counter 1-60,000 pieces, 1-99 piece / work piece, screw time 0.01-9.99 seconds, parameter sets 10 pieces - sequence individually or sequentially adjustable from 0.01-9.99 seconds, Output signal / ready for operation - Torque reached - Workpiece complete OK - Single screw operation OK - Error screwdriving, input signal / release screwdriver
Scope of supply ASA BS-6000 screwdriver, AM-30 control unit, screwdriver cable
